Corner/Room Divider Curtain Track Sets

Curtain Rod Connection

  • $ 120.00

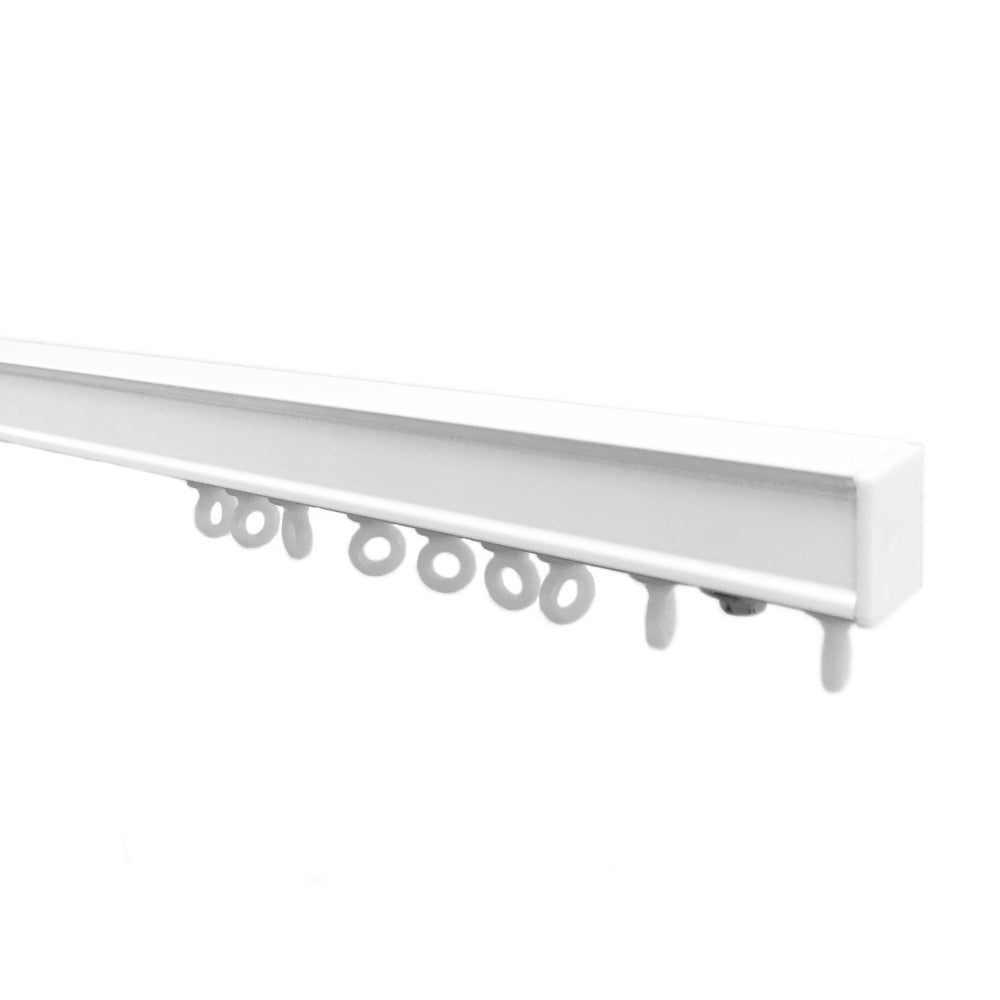

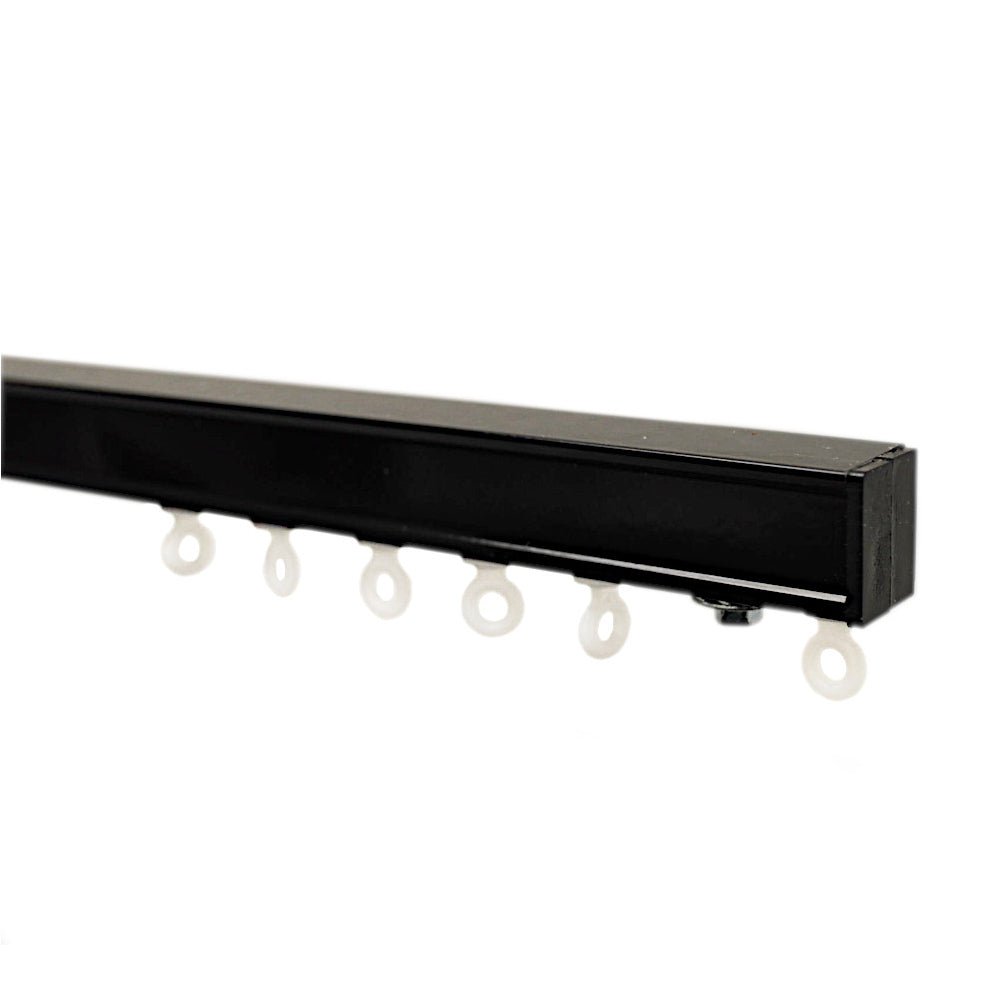

Our collection of wall or ceiling mount curtain track sets using our KS (1/2") or CS (3/4") aluminum curtain track with 90 degree corner bends for corner windows and room divider curtain track situations. Includes L shapes with one bend and U shapes with 2 bends.

If you select the wavefold carriers, please view the links on the wavefold collection page to learn more.

All track can easily be cut to size with a hack saw. If you want us to cut to a different size, just leave the dimensions in the custom cut box. If you need a set with custom angles, contact us.

The corner bend takes up 6 1/2" each direction for the KS track and 9" each direction for the CS track, so the track pieces are cut shorter than the set length.

The KS track holds a maximum of 3 lbs per foot. The CS is a little heavier duty and holds a maximum of 6 lbs per foot. Both have great splices and patented lubrication. The KS bend radius is 4". The CS radius is 6".

Keep in mind that an equal size track is not necessary on each side of the bend. For example, the L-96" track set could be cut and spliced to have 14' of straight track on one side of the bend and 2' on the other or any other combination up to 192" total (96" x 2).

 L-60" comes with track, 1) 90 degree bend, 2) end caps, 30) slides, 6) wall or ceiling brackets and 2) splices.

L-96" comes with track, 1) 90 degree bend, 2) end caps, 48) slides, 6) wall or ceiling brackets and 2) splices.

L-144" comes with track, 1) 90 degree bend, 2) end caps, 72) slides, 10) wall or ceiling brackets and 4) splices.

U-96" comes with track,, 2) 90 degree bends, 2) end caps, 72) slides, 10) wall or ceiling brackets and 4) splices.

U-144" comes with track, 2) 90 degree bends, 2) end caps, 96) slides, 15) wall or ceiling brackets and 7) splices.

Drop chains are available to purchase separately.
