CS Hand Draw Curtain Track Set

CS-HD-4-WH
  • $ 73.00


Shop Wave fold panels (select wavefold carriers)

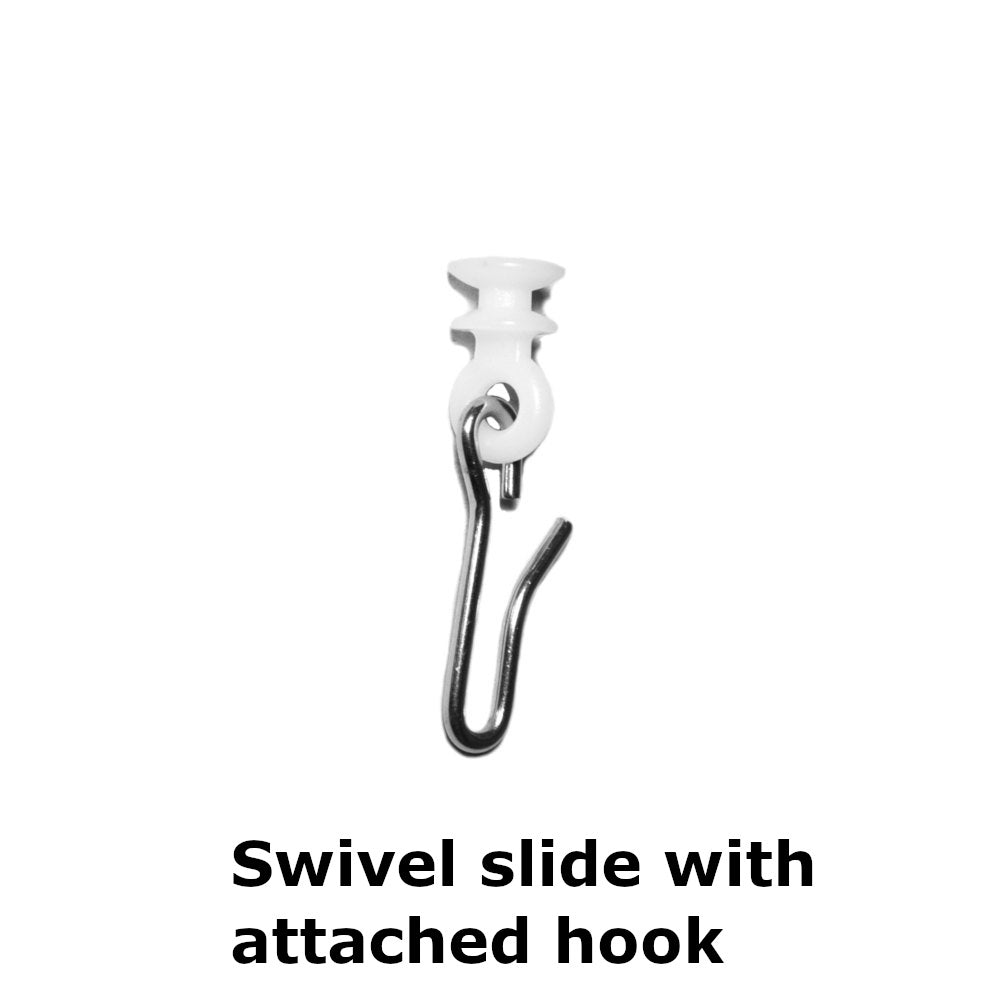

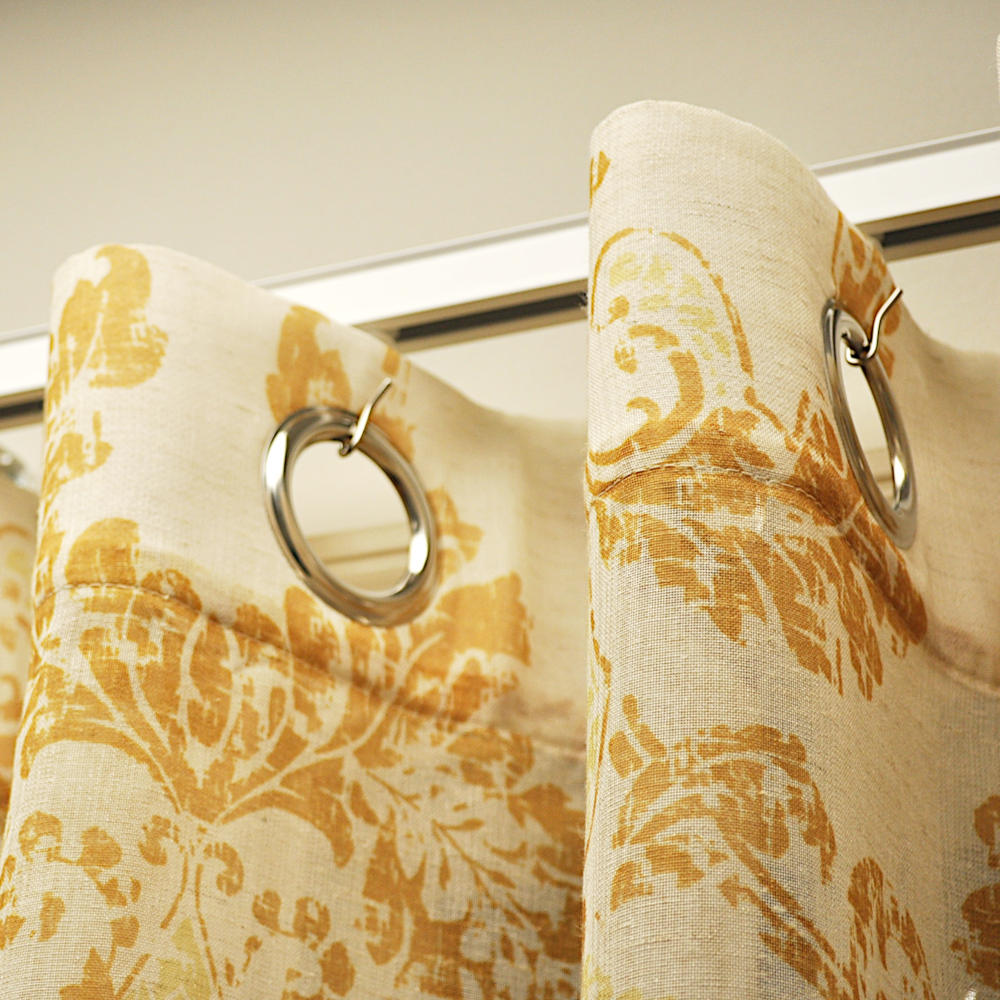

Shop Grommet panels (select swivel slides w/ attached hook)

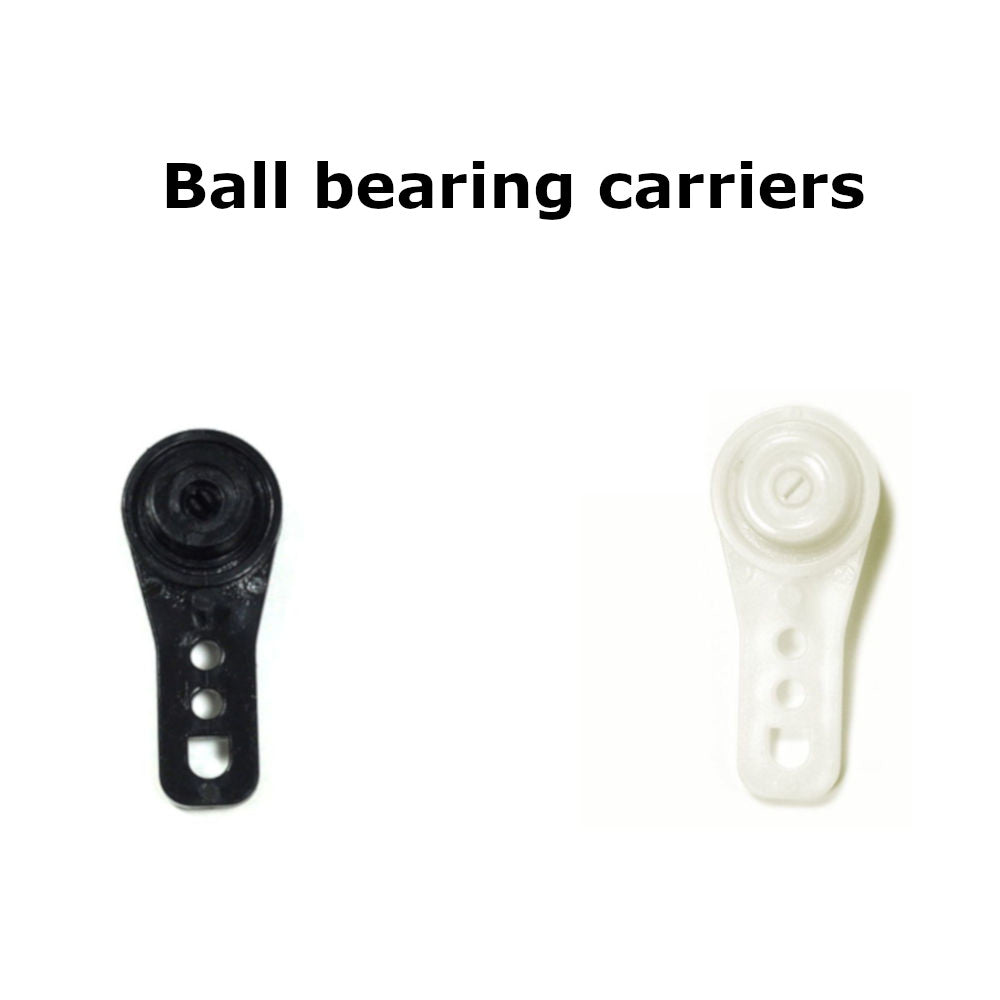

 The wave system is now available on most of our of our tracks. Select wavefold carrier for this option. To learn more, view on our wavefold collection page. Ball bearing carriers are typically used with pleated draperies or curtains with pin hooks

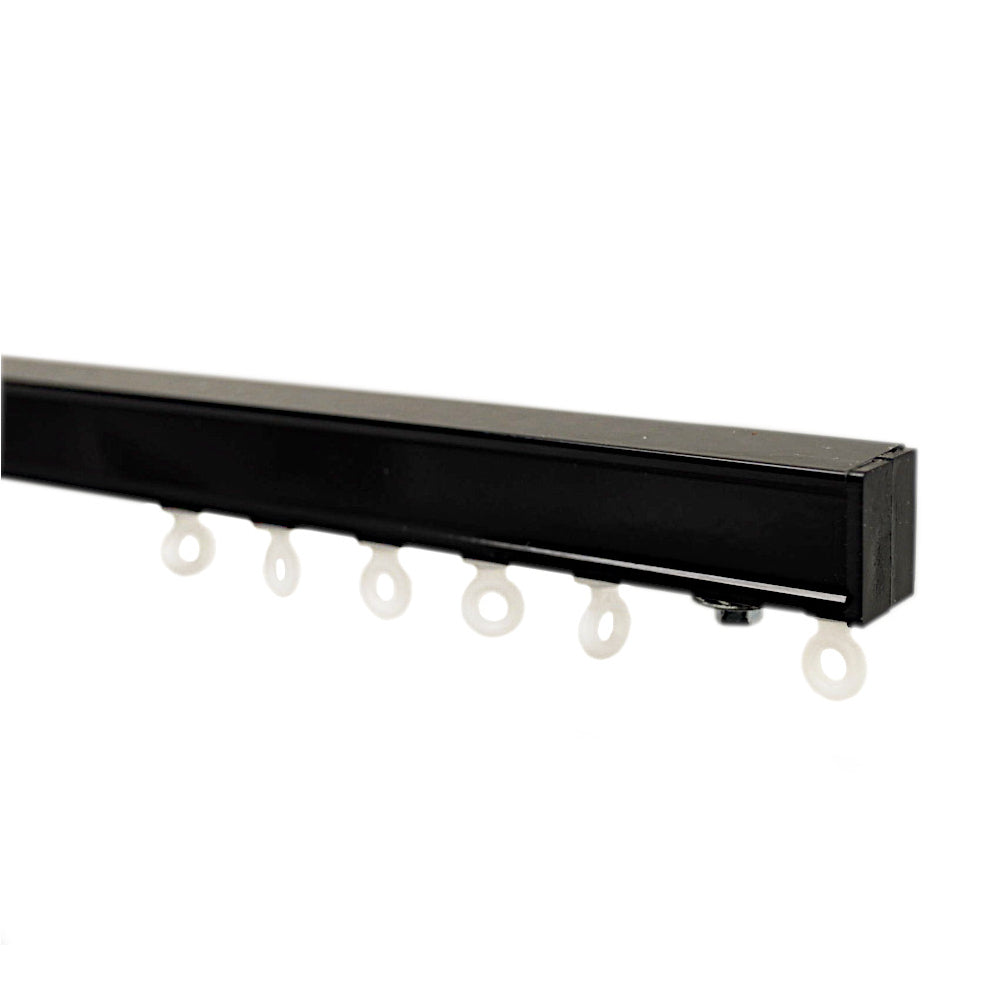

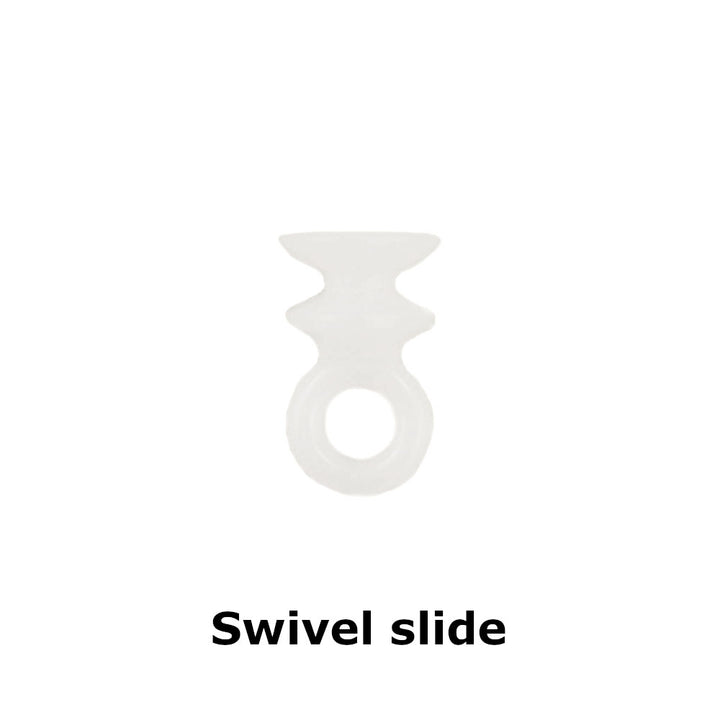

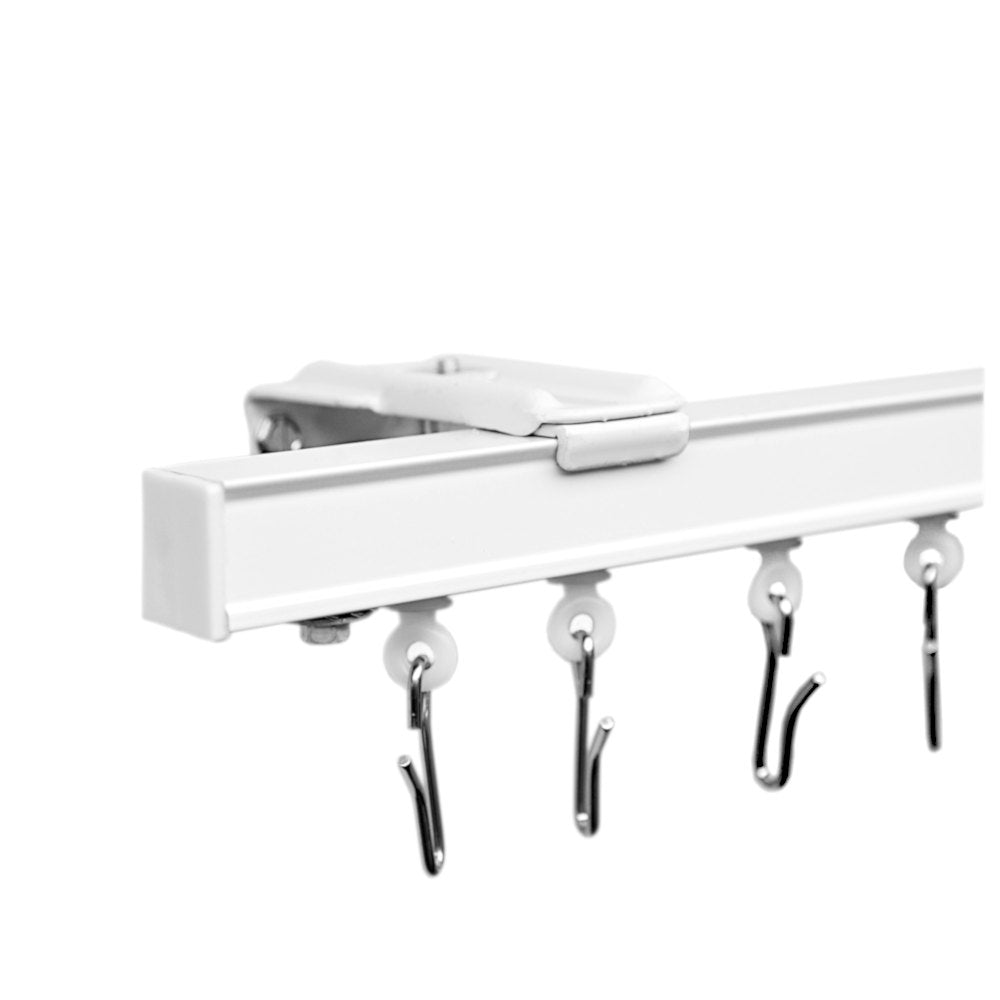

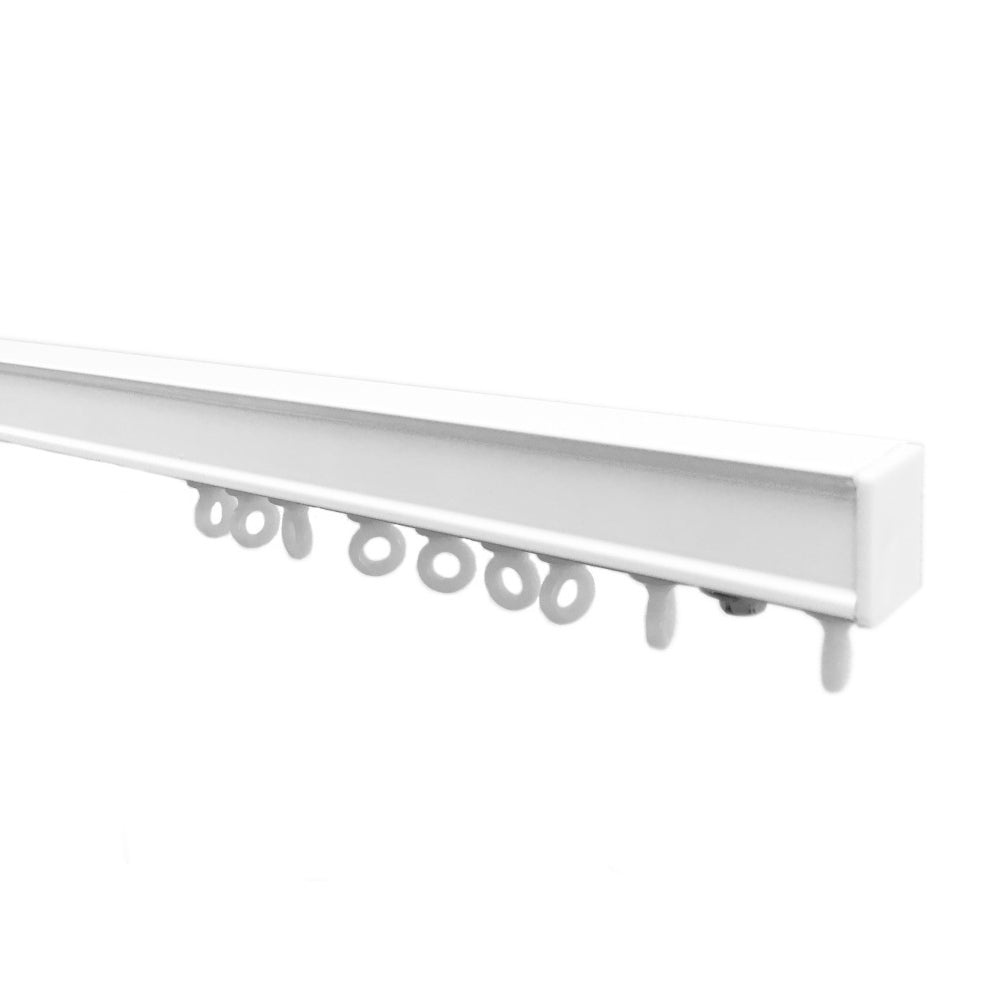

Forest CS complete assembled hand draw track set with ball bearing carriers for pleated draperies or swivel slides or swivel slides w/ attached hook for grommet curtains. Can also be used with our wave fold panels (select swivel slides for wavefold). Can easily be cut to size with a hack saw, or if you leave a dimension(s), we will cut it to size. Available in wall or ceiling mount.

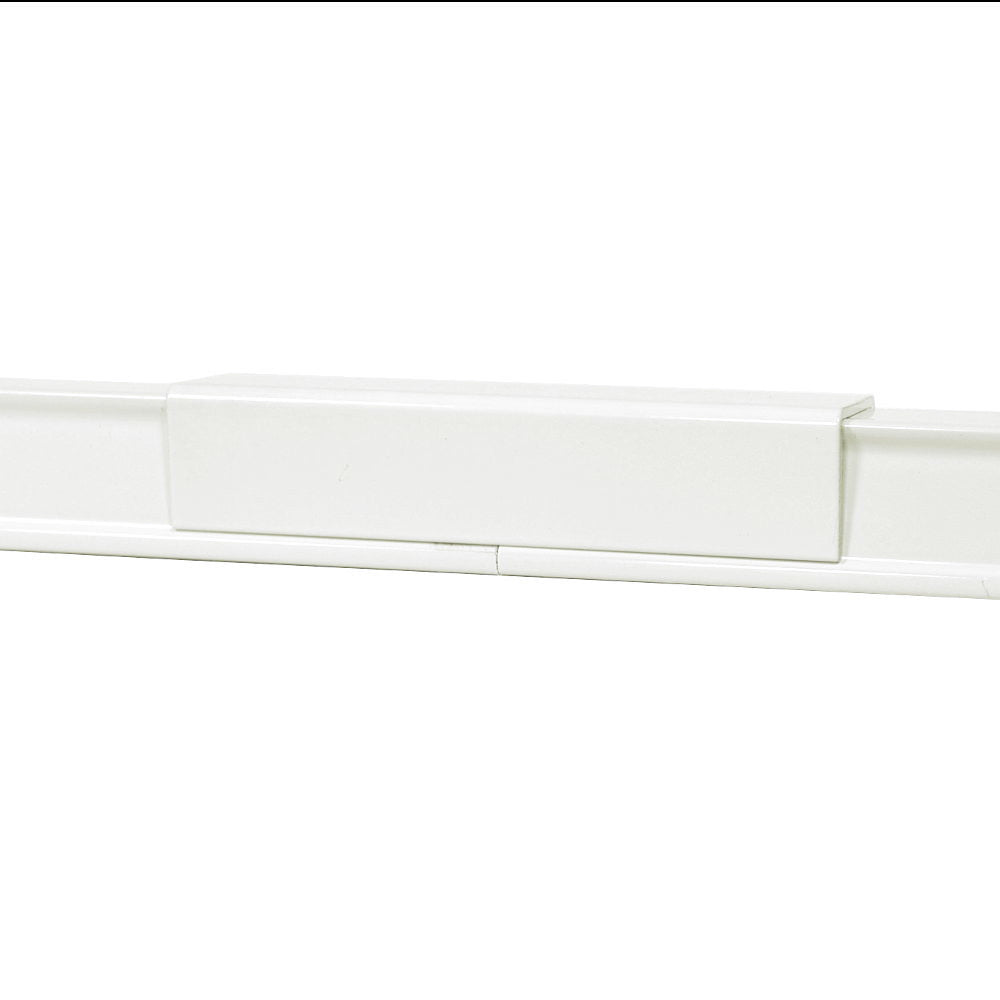

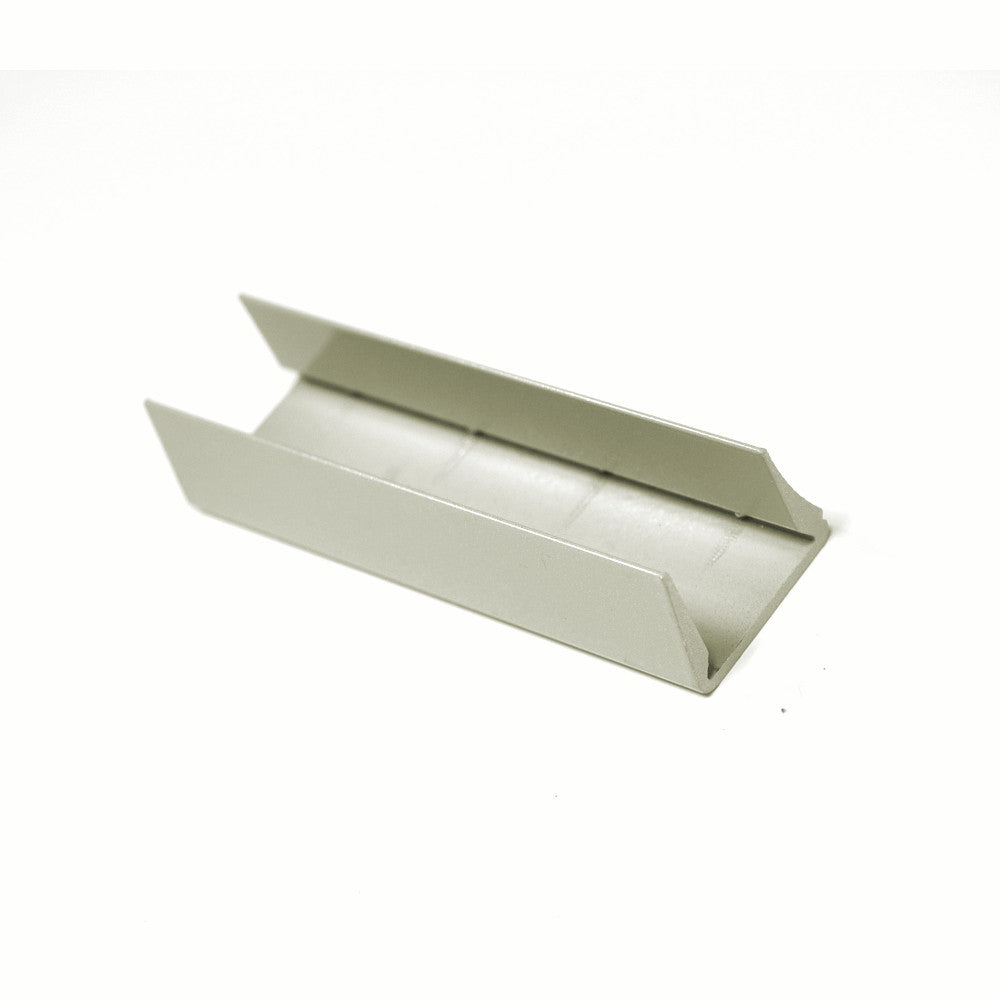

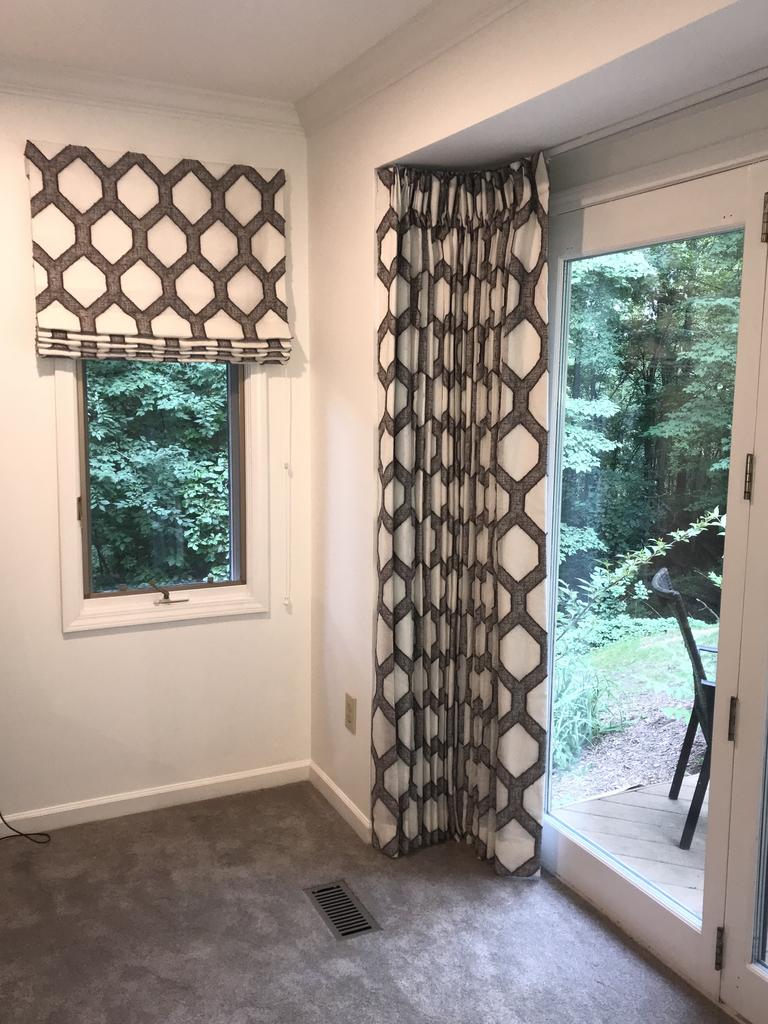

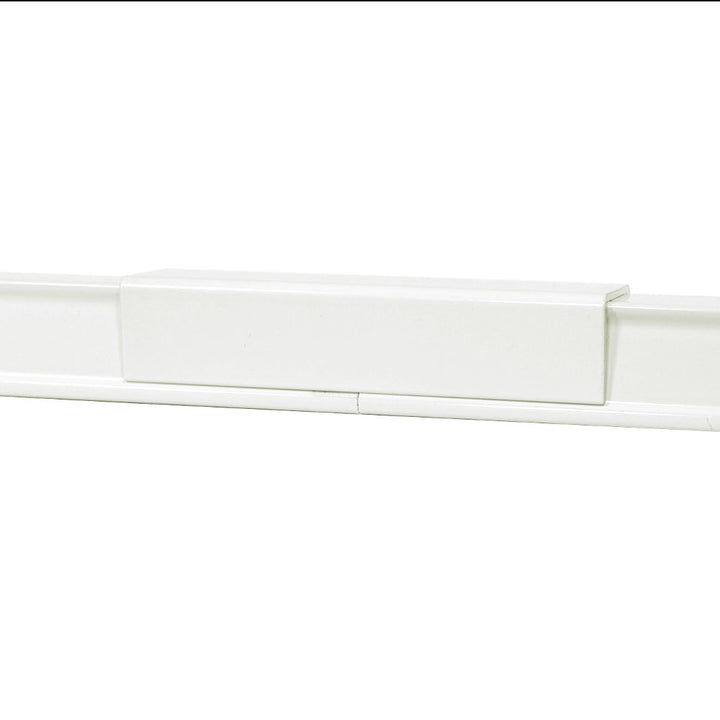

Heavy duty aluminum track, powder coated white, black or gray. 3/4" high, 3/4" deep, reversible track. This track has 90 degree and 45 degree bends available. See the CS parts page. Be sure to order splices to join the bend with the straight track sets.

Track is rated at 6 lbs per foot; for example, a 10 ft. track will hold a maximum of 60 lbs.

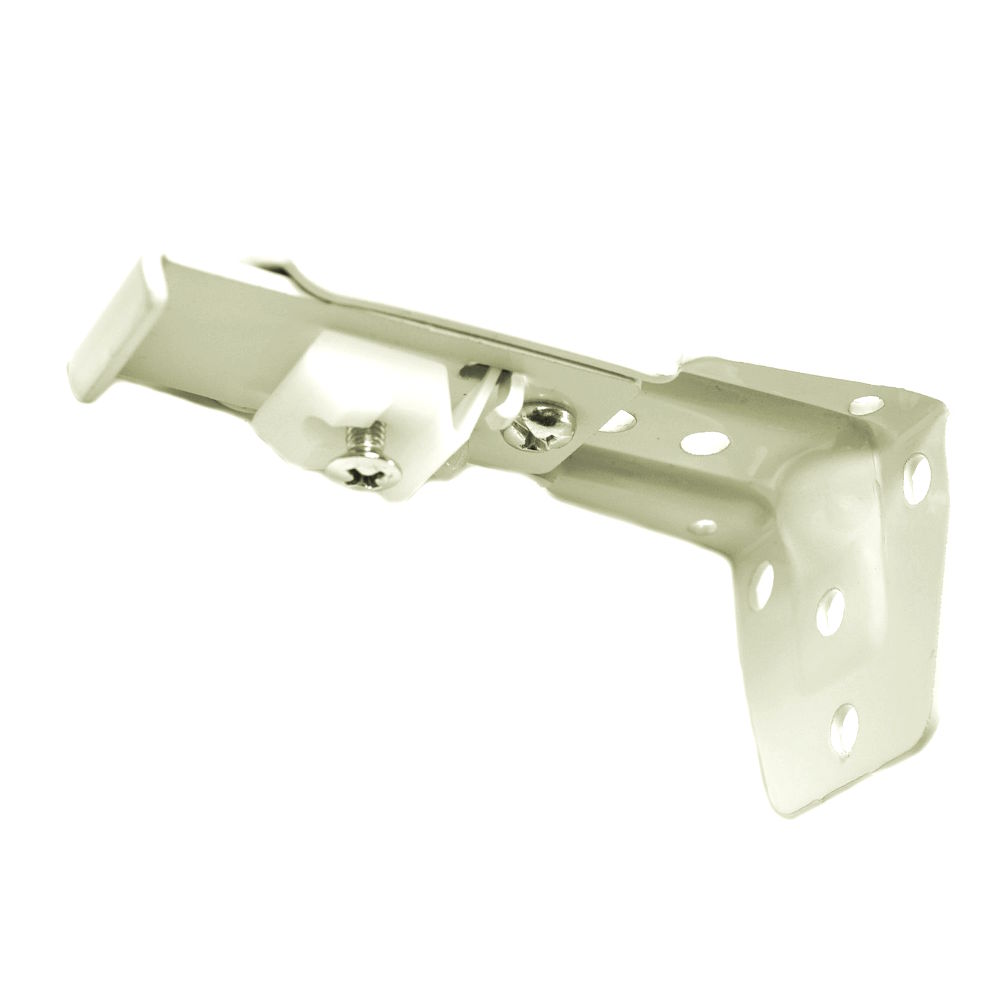

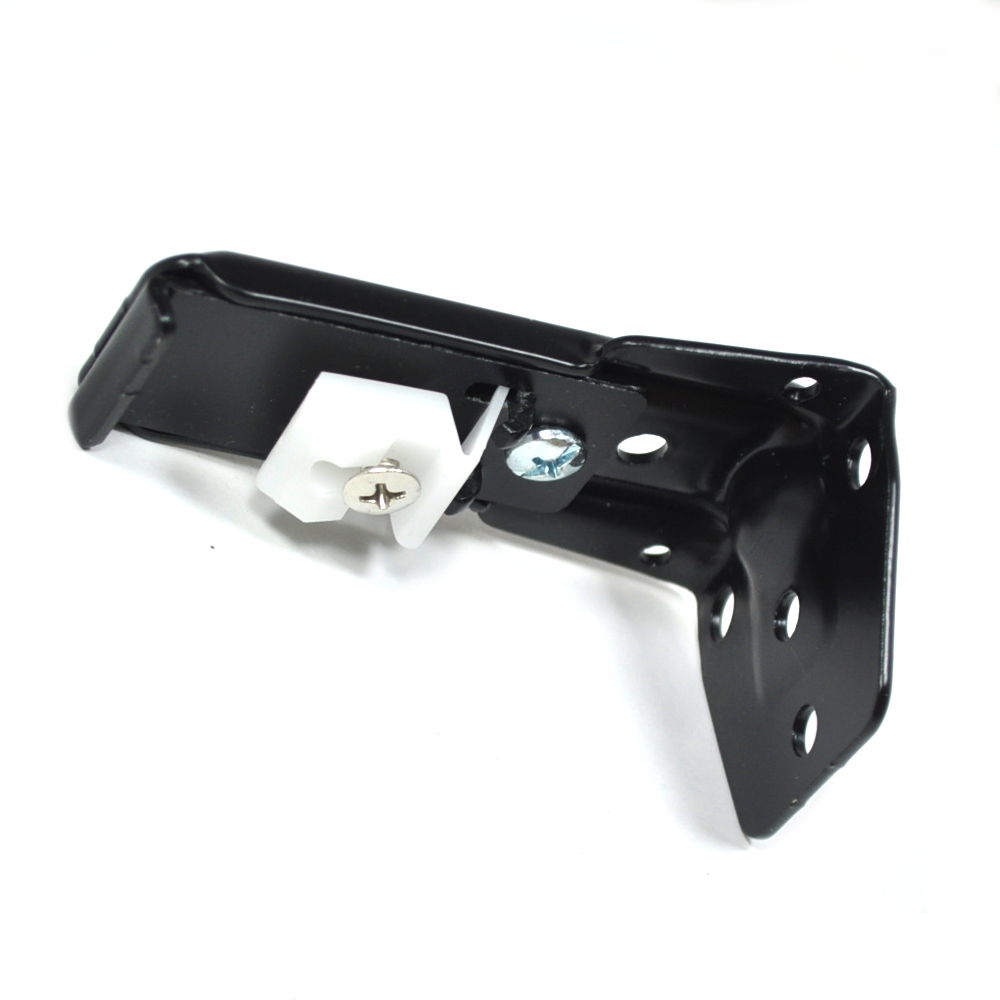

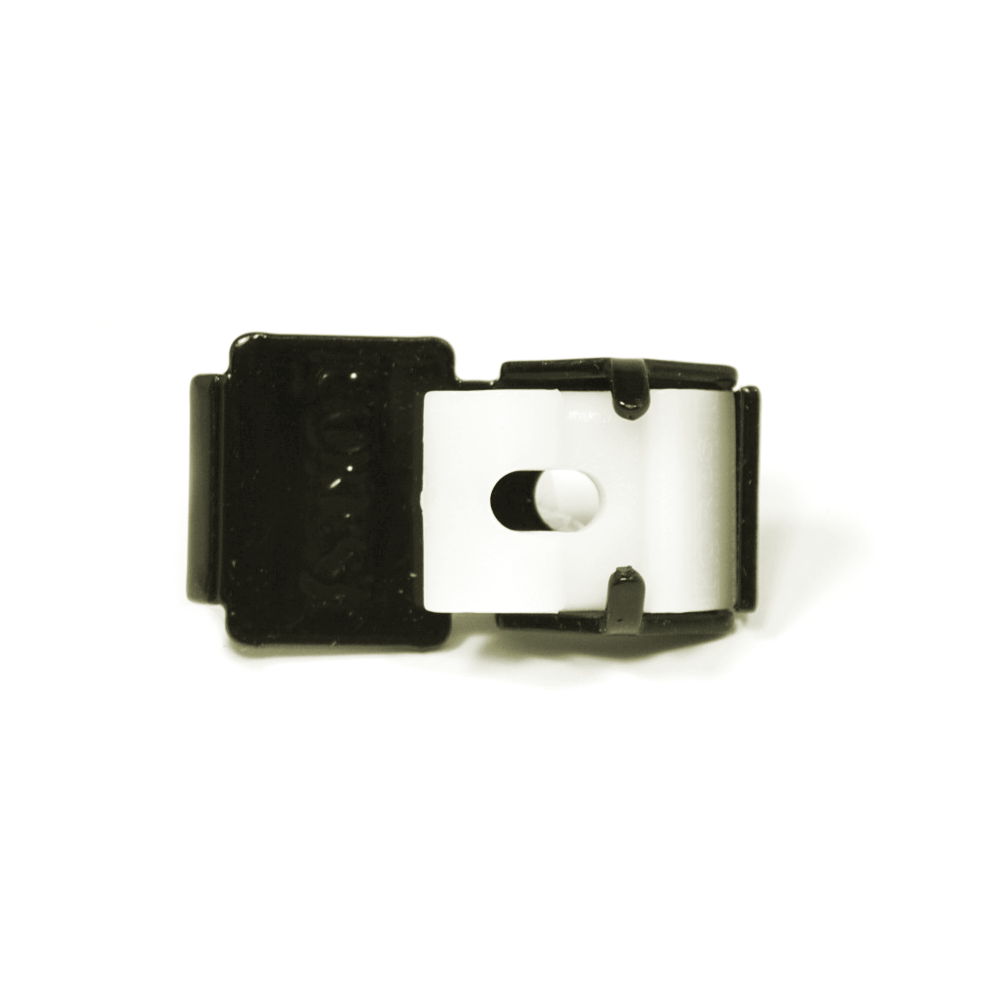

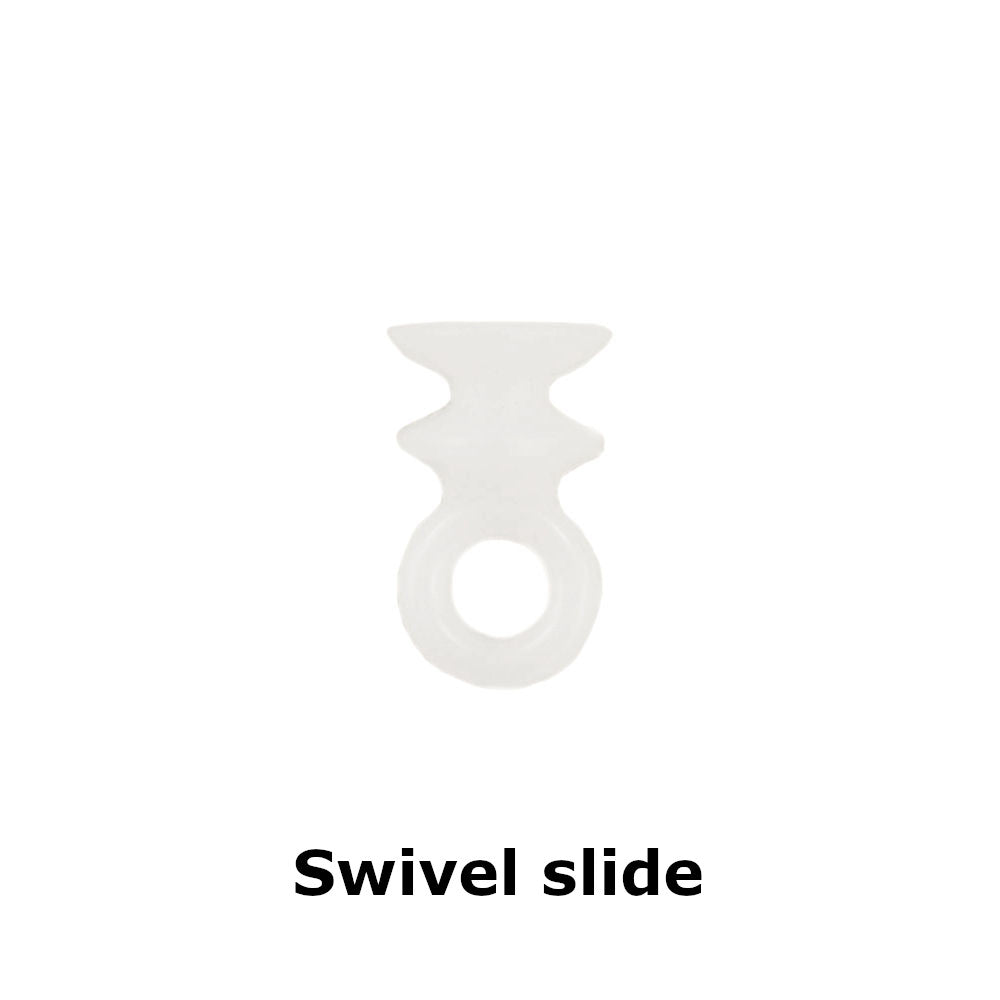

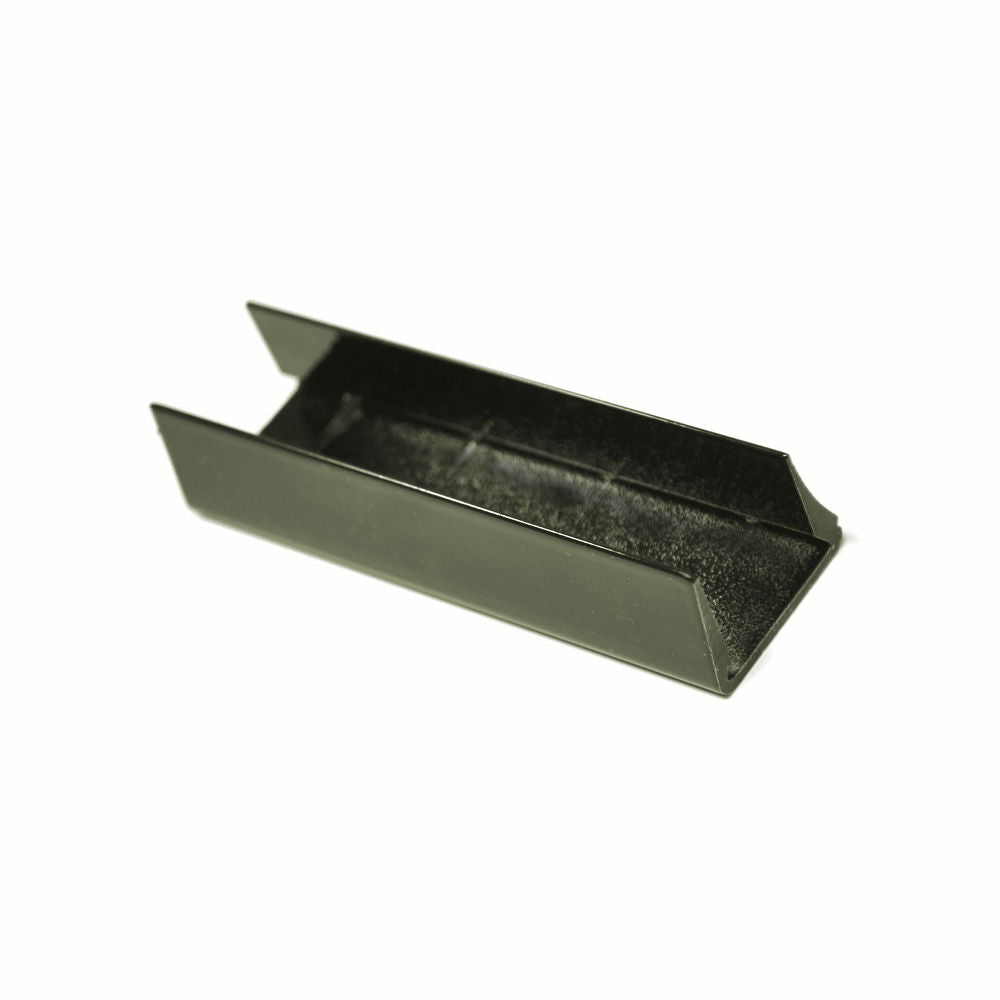

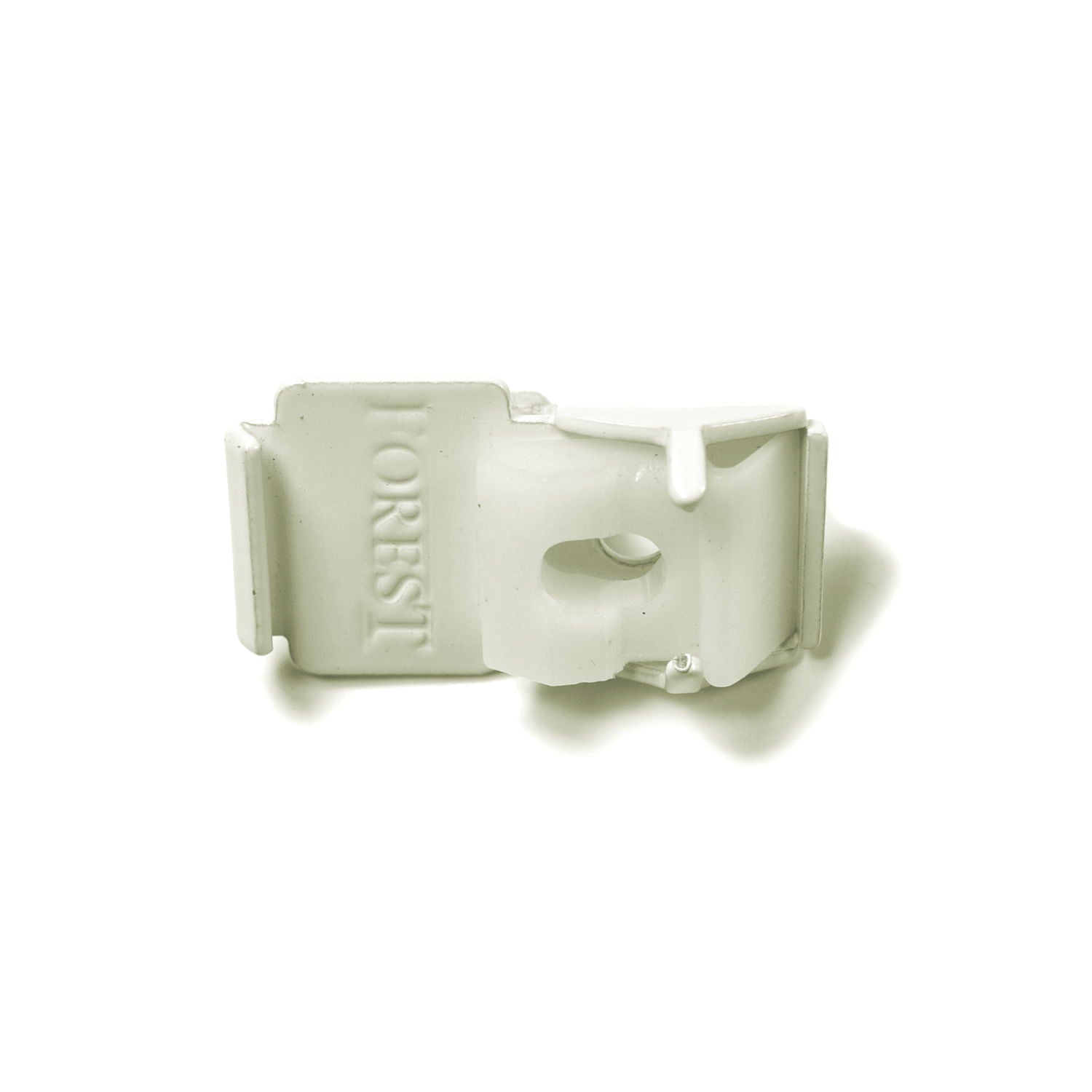

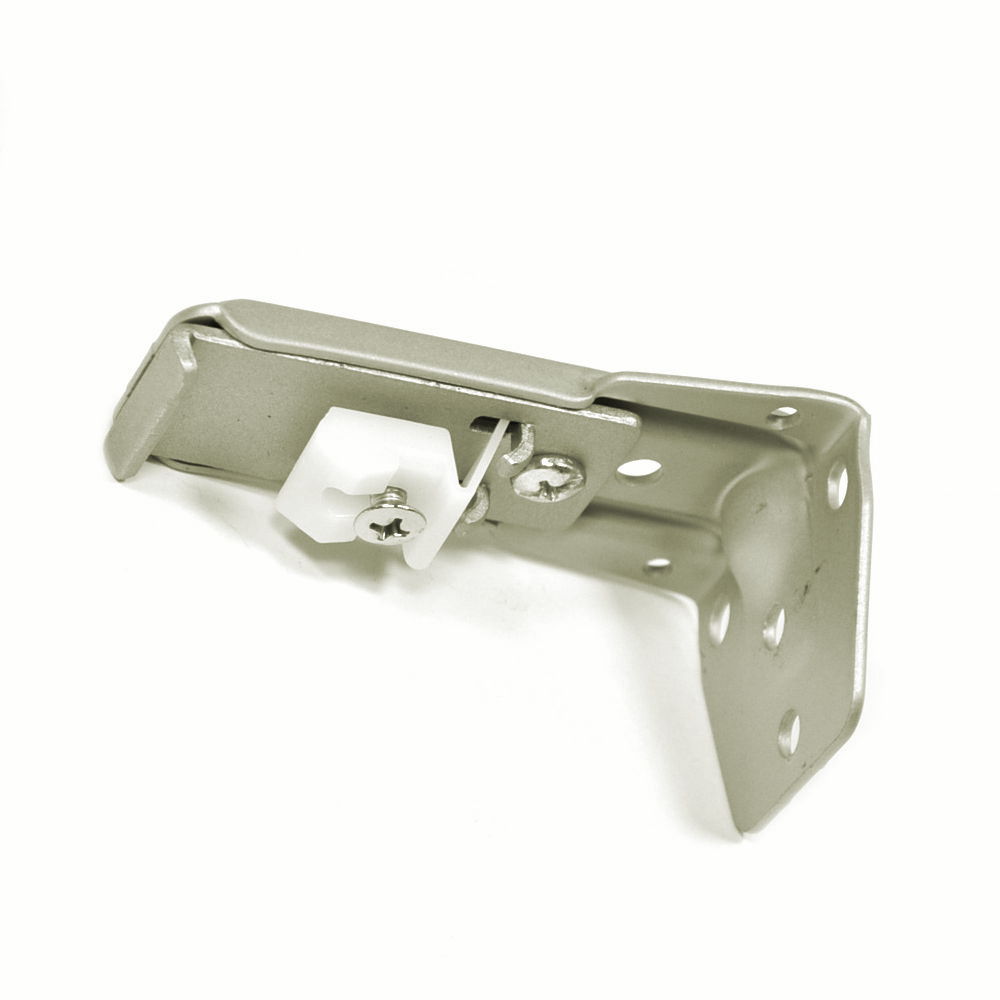

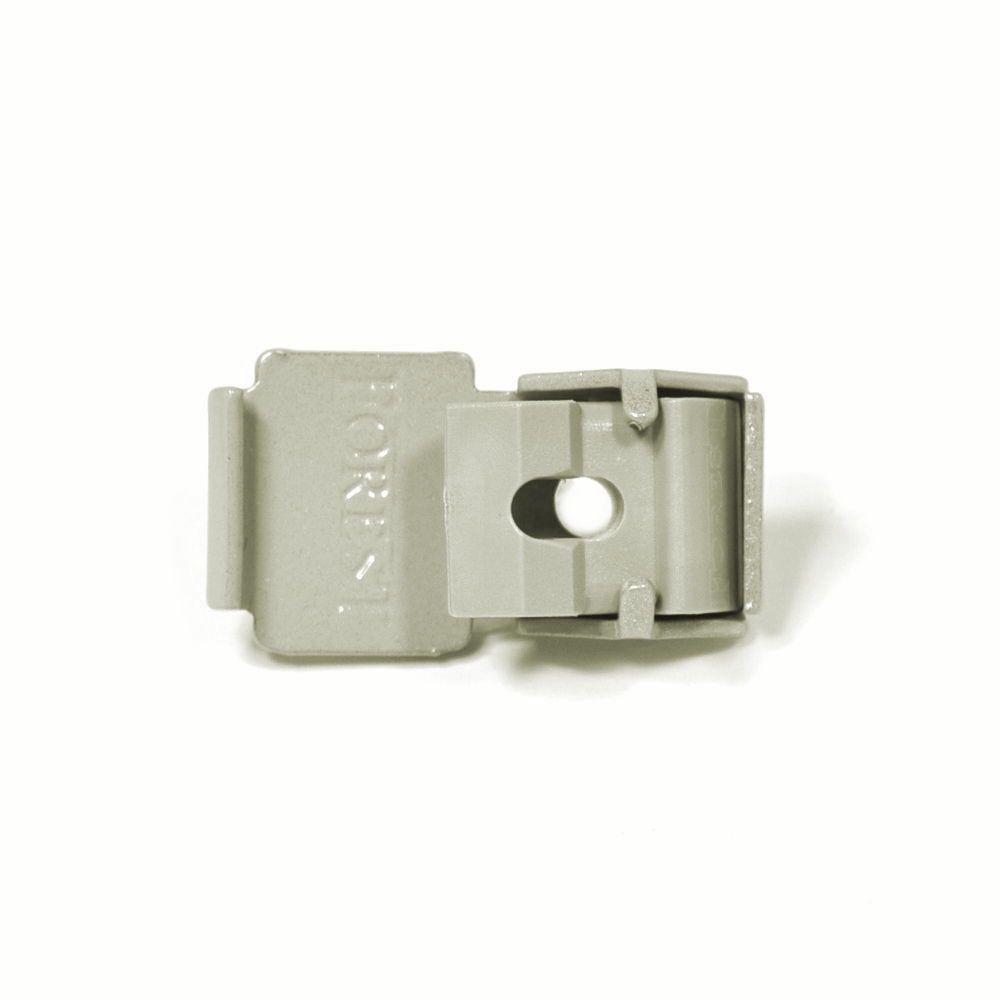

Each set includes track, end caps, wall brackets or ceiling clips, splices and slides (3 1/2 per foot for ball bearing carriers & 4 per foot for swivel slide and swivel slides with attached hook).

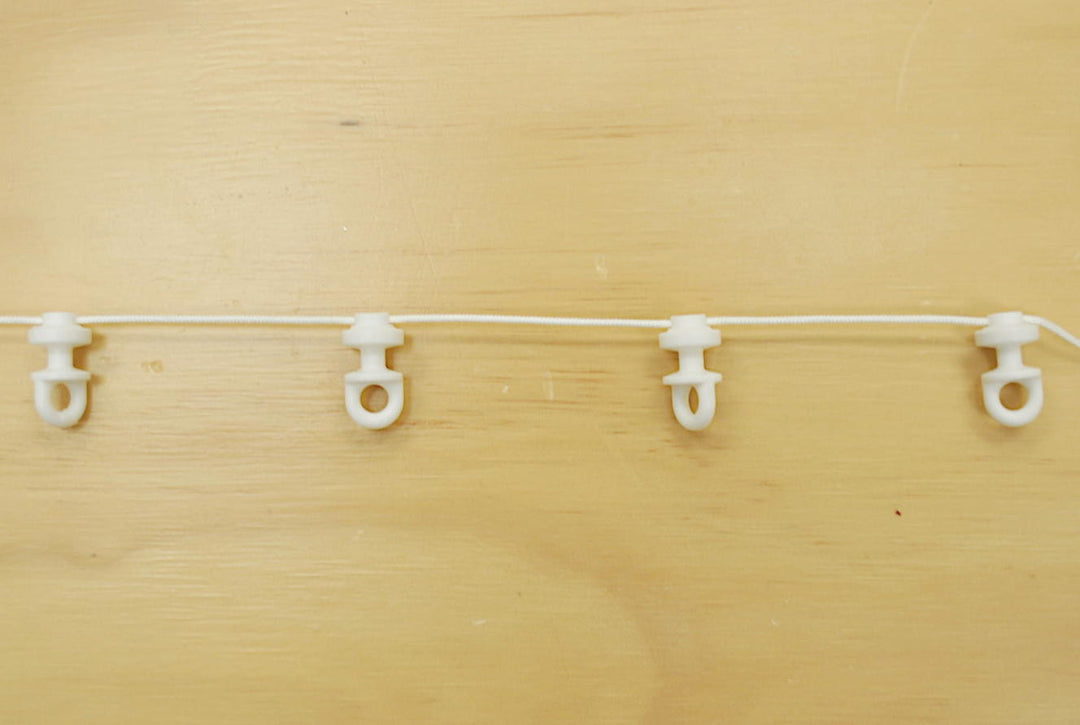

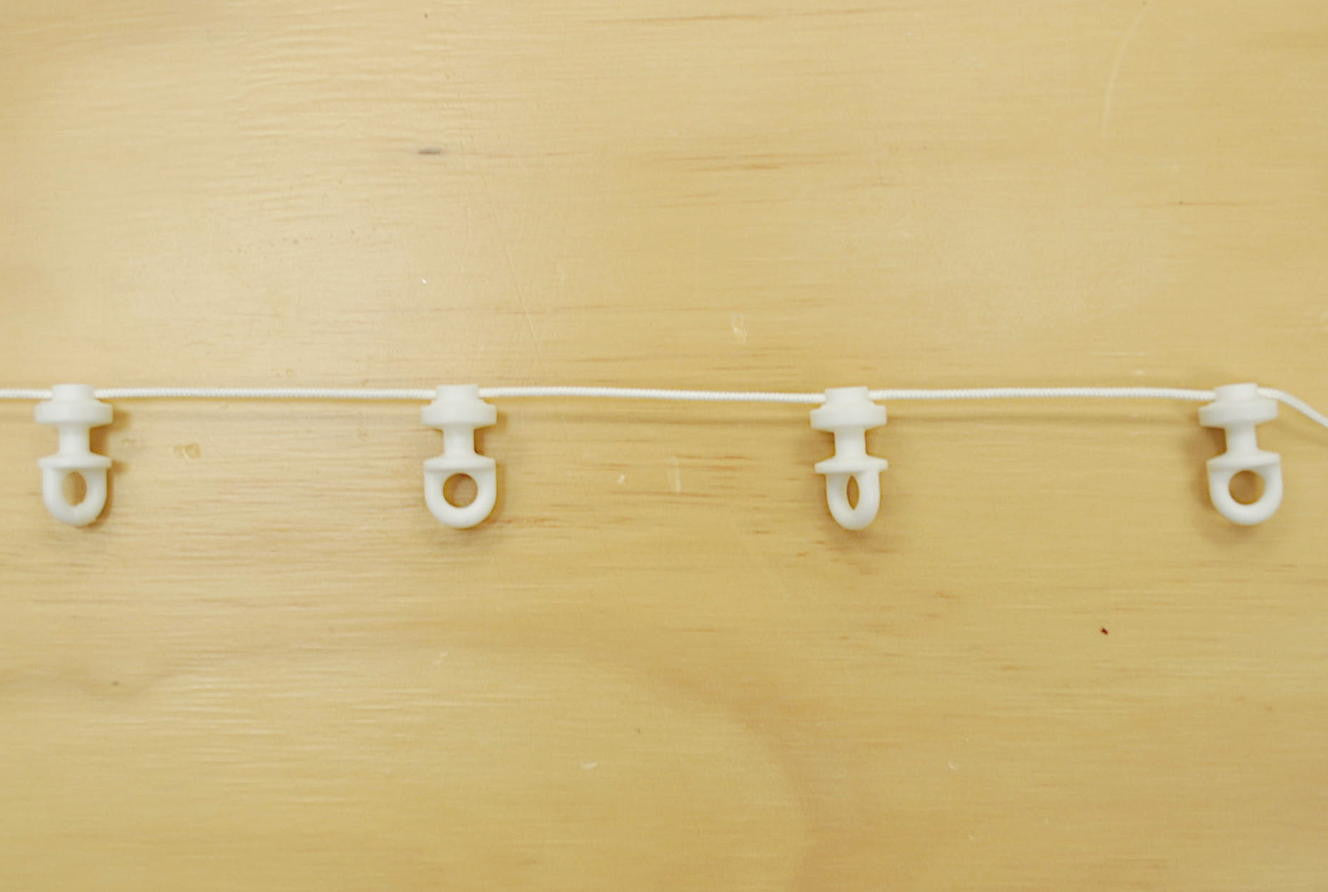

If Wavefold carriers are selected, you will receive the following quantities. This will often be more than required. Cut the string to remove the excess.

(48"-24)(60"-28)(72"-40)(84"-48)(95"-48)(120"-60)(144"-72)(168"-96)(180"-96)(204"-120)(228"-120)(252"-144)(336"-168)

Pin setting using ball bearing carriers for pleated draperies should be 1 1/2"

Batons can be added and are available to purchase separately.
