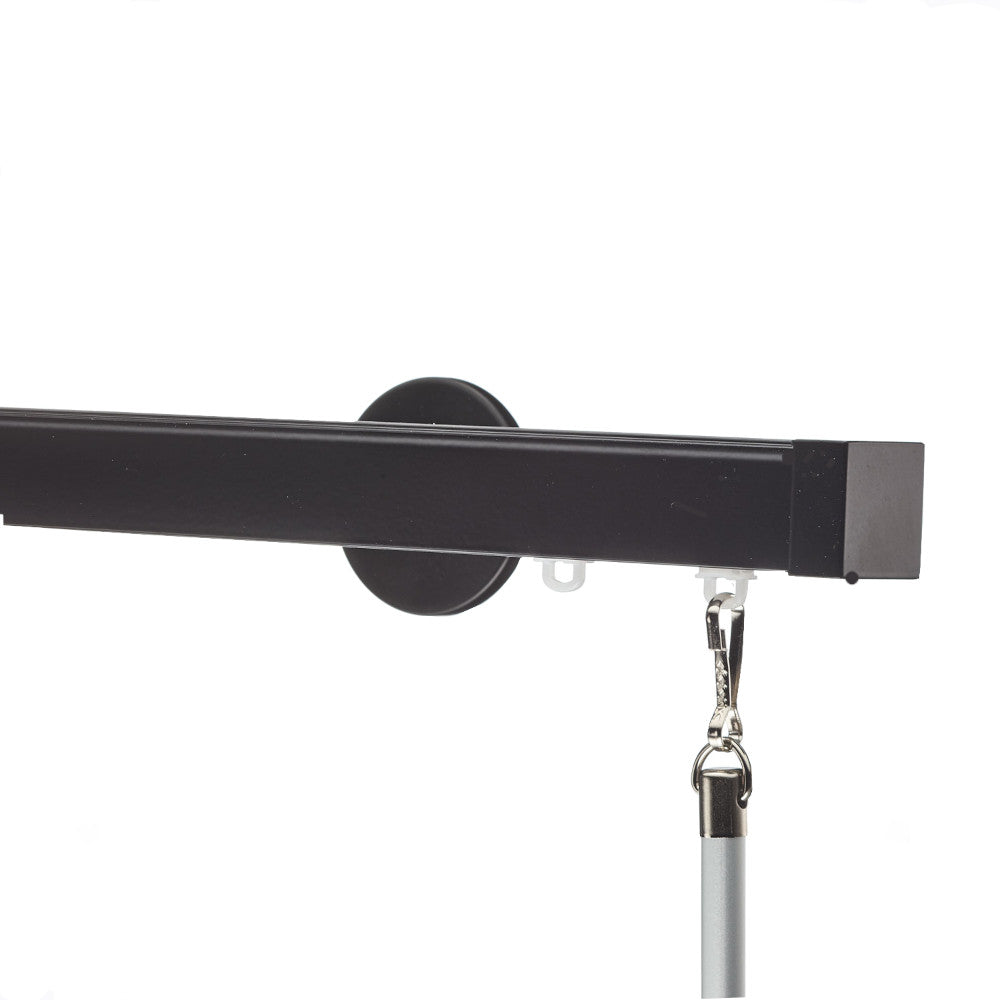

Nexgen Single/Double Traverse Rod Set

What it is:

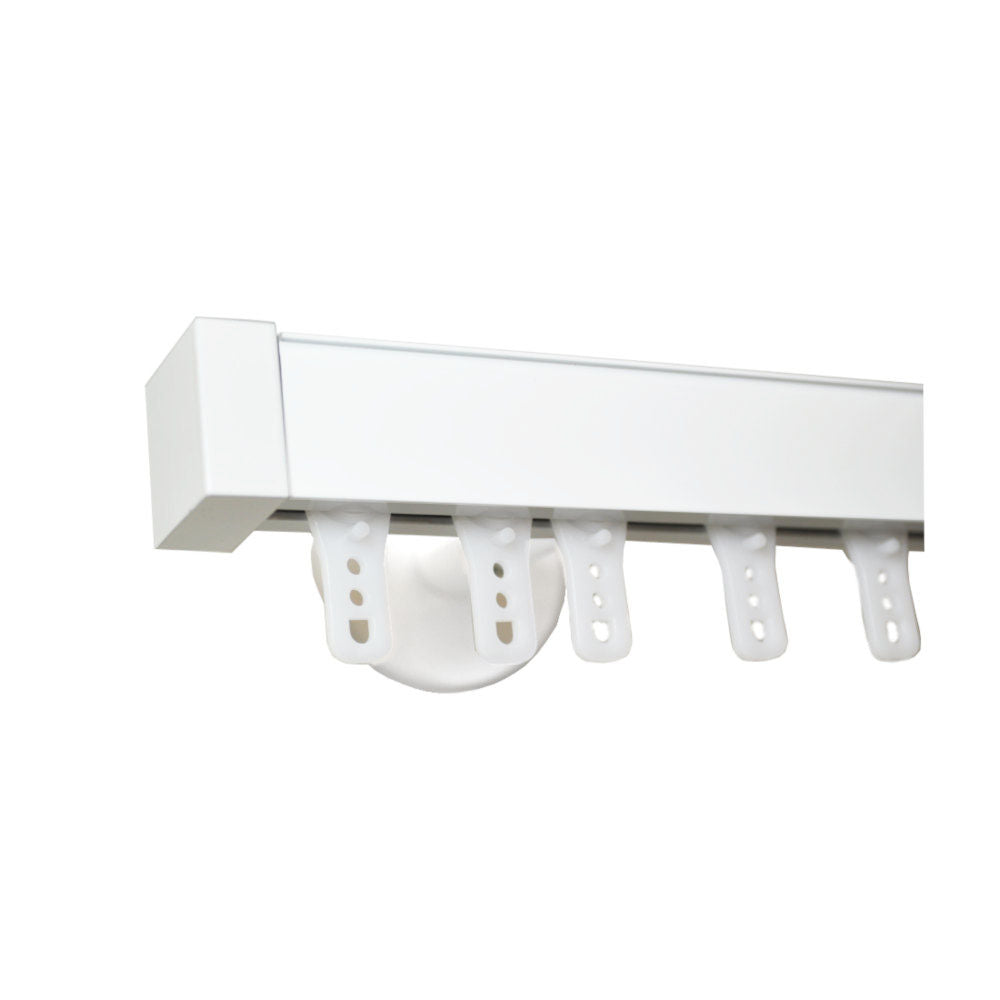

Heavy duty aluminum track set with a modern contemporary look. The track is 1" tall and 1" deep.

Features:

• Track is rated at 6 lbs. per foot; for example, a 10 ft. track will hold a maximum of 60 lbs.

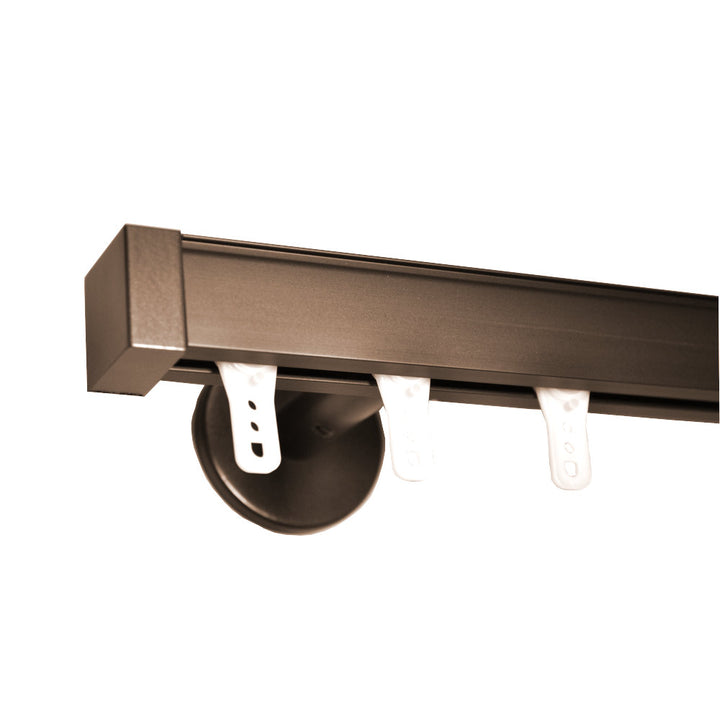

• Available colors are white, matte black, silver and bronze
• Custom cut to size at no extra charge.

• Since this is a baton draw, you can use one panel as a one-way draw, two panels as a split draw or multiple panels and draw them any direction desired.

Options:

Carrier style:

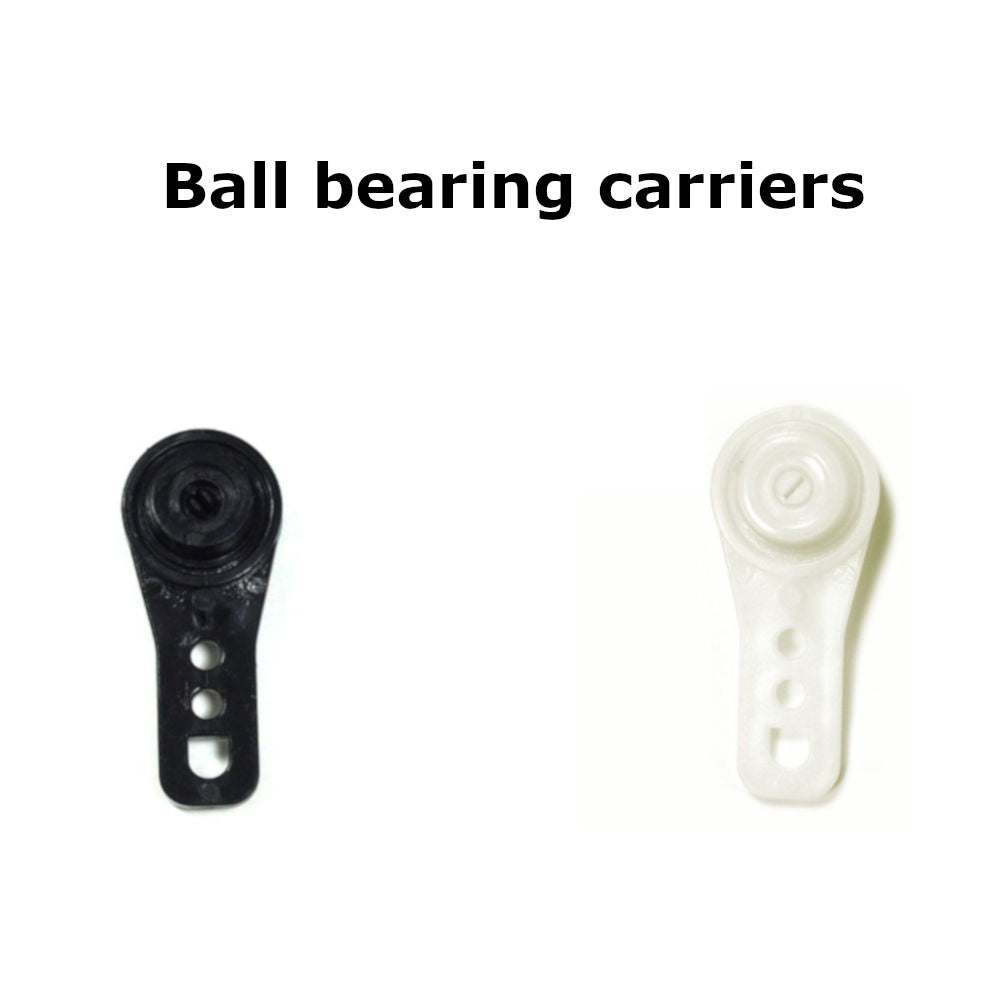

• Ball bearing carrier-traditional commercial style carrier for pleated draperies using standard drapery pin hooks. Pin setting should be down 1 1/2" to cover the track with pleated draperies.

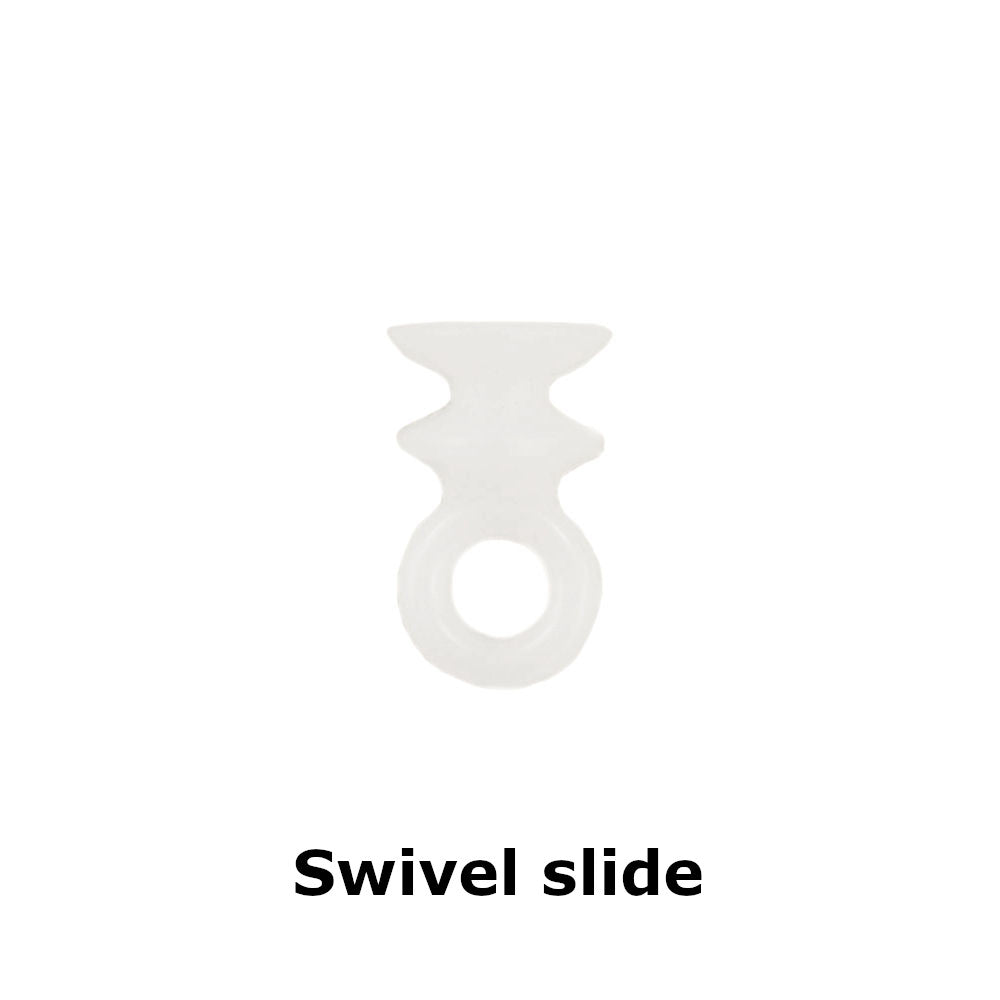

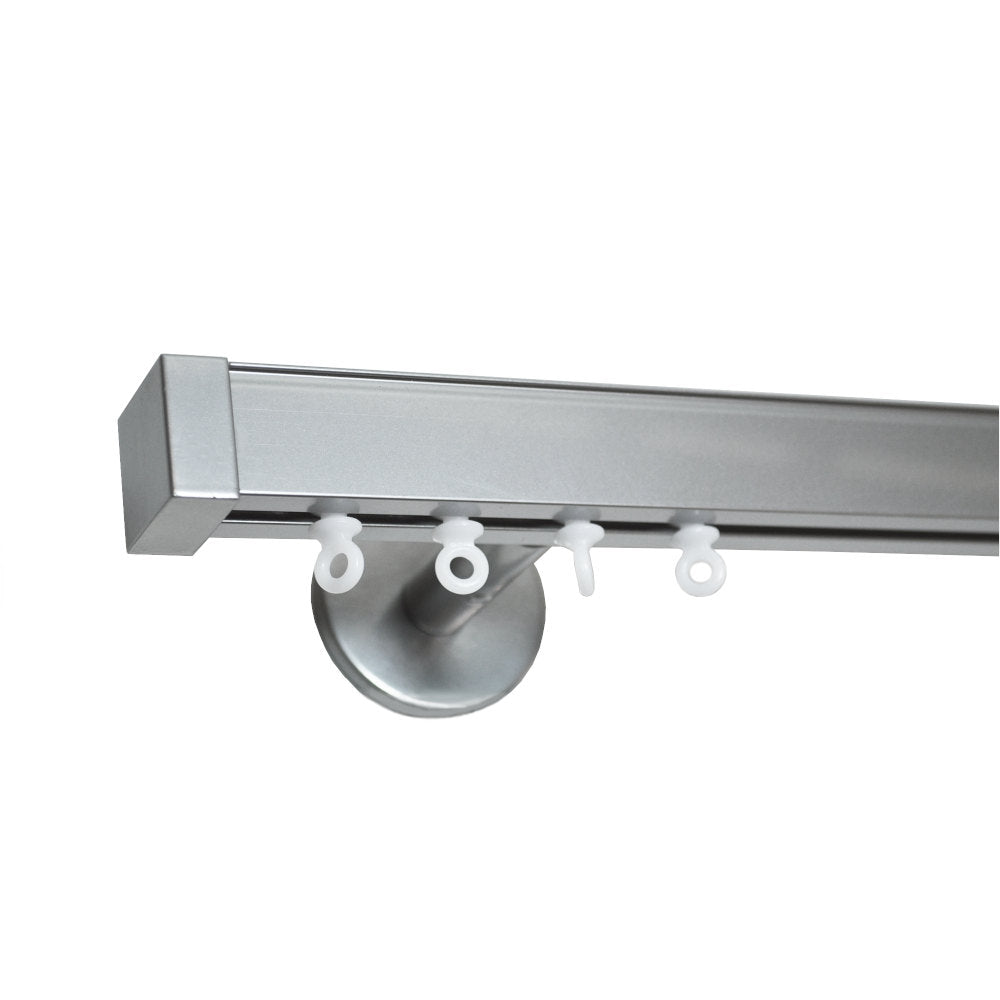

• Swivel slides- universal style of slide that can be used with pleated curtains and other styles with various hooks.

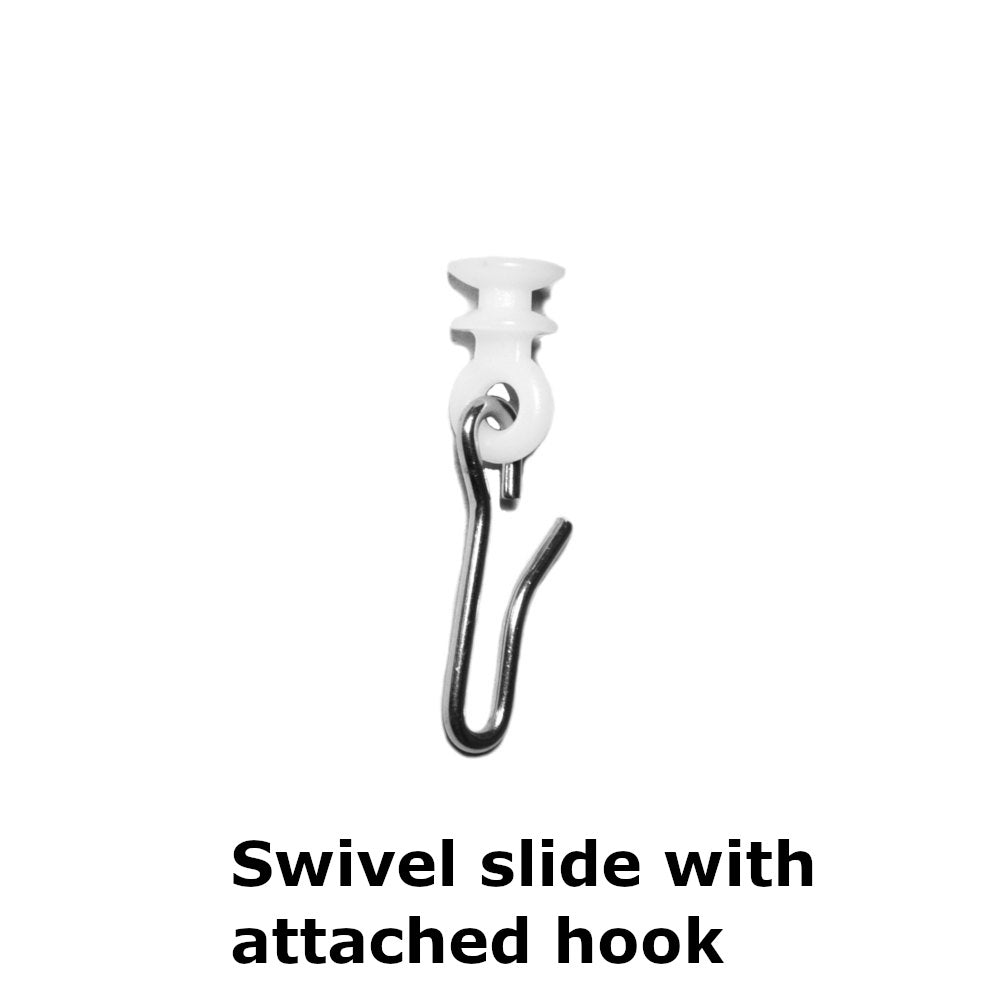

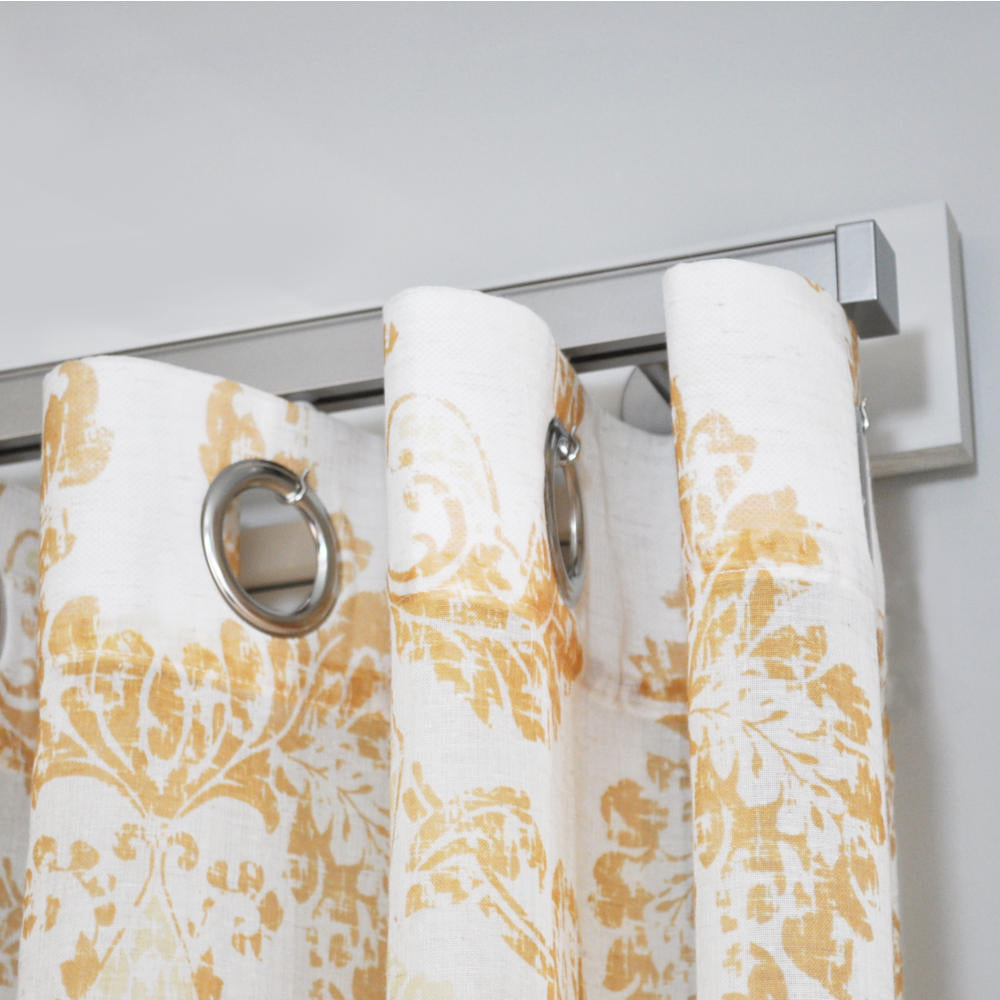

• Swivel slide with attached hook-primarily used with grommet curtains. The inside top of the grommet hole should be 1 1/2" down from the top of the curtain.

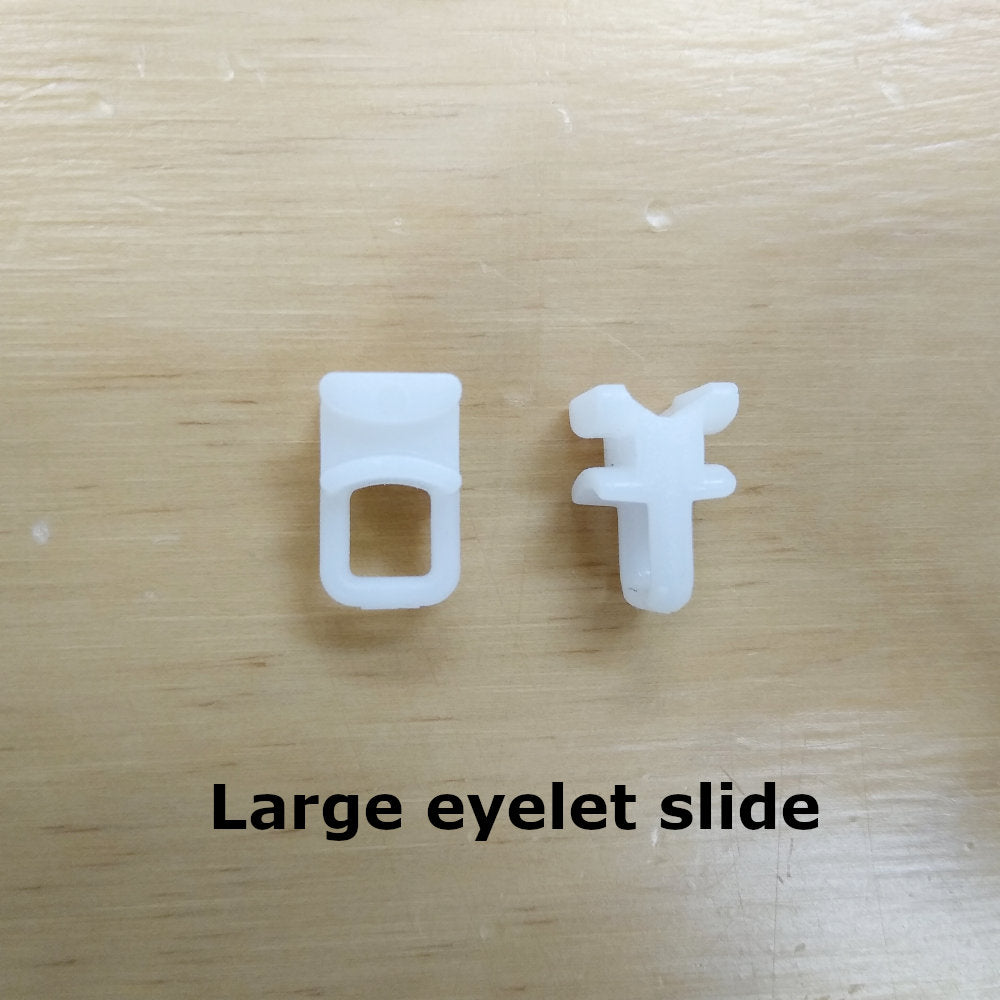

• Large eyelet slide-a slide with a larger hole to accommodate plastic pin hooks for pleated draperies.

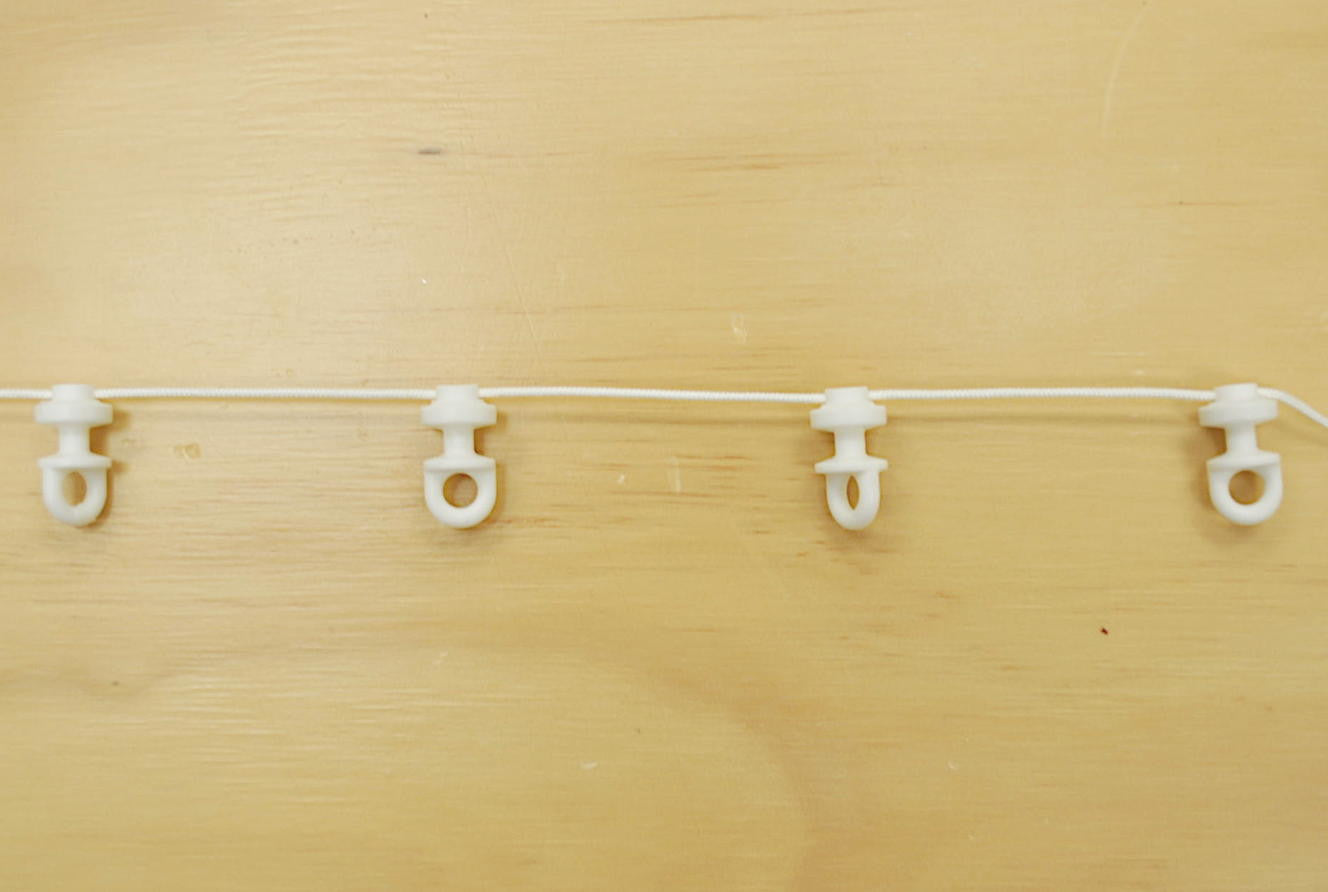

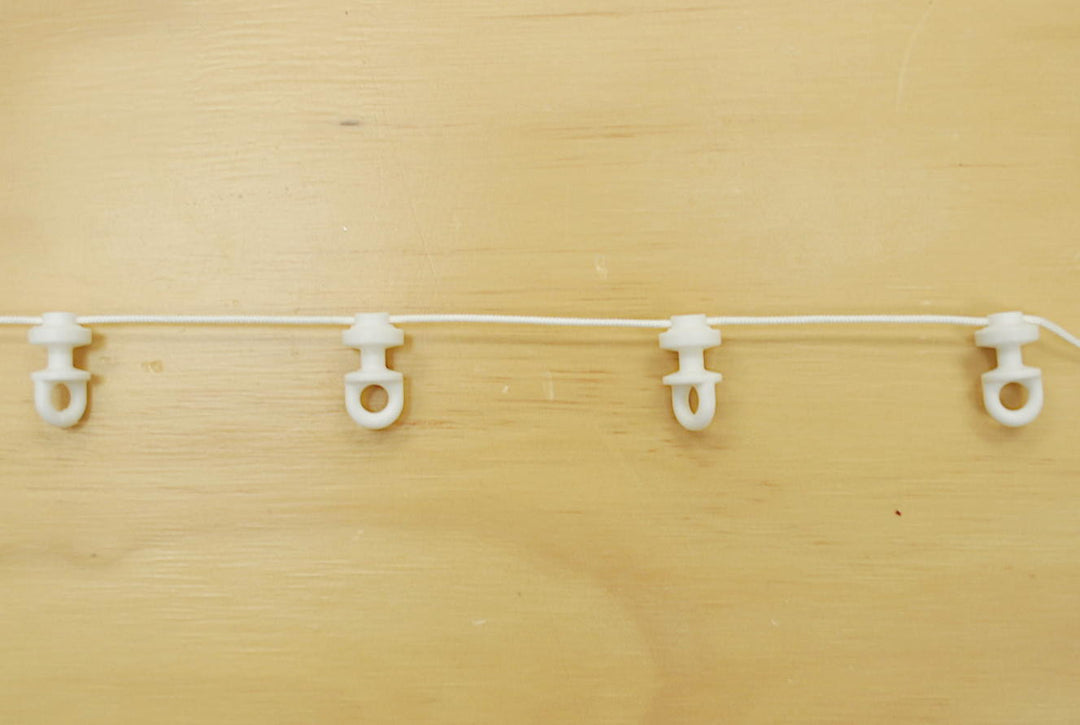

• Wavefold carriers-the wave system is now available on most or our tracks. To learn more, view our wavefold collection page.

• If Wavefold carriers are selected, you will receive the quantities below. This will often be more than required. Cut the string to remove the excess.

  (48"-24) (60"-28) (72"-40) (84"-48) (95"-48) (120"-60) (144"-72) (168"-96) (180"-96) (204"-120) (228"-120) (252"-144) (336"-168)

Mounting method

• Decorative wall brackets in 3" or 5" projections (distance from the wall to the channel of the track)
• Ceiling brackets

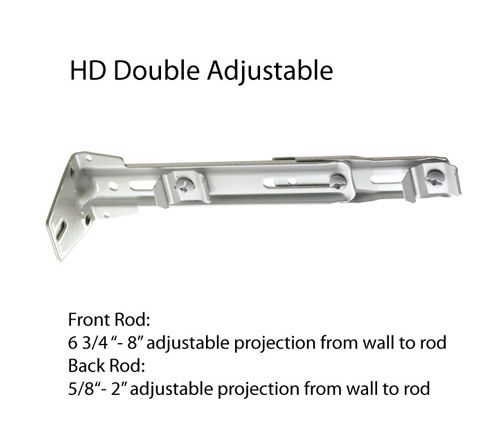

• Standard non decorative double brackets

What's included:

• Track and splices (if applicable)
• Decorative contemporary metal end caps-1/2" wide
• Decorative wall or ceiling brackets (non decorative)
• 3 1/2 slides/carriers per foot. See above for number of wavefold carriers
• Two 36" white fiberglass batons for wall mount or two 48" white fiberglass batons for ceiling mount. If wavefold carriers and One-way draw are selected, only one baton will be sent.
